Revo Carbon Air Intake | MQB - Application List In description

Select from the following options...

Price: £329.30


Excluding VAT Price: £274.42

Finance available Find out more

Monthly payments £
Amount of goods £
Deposit amount £
Loan amount £
Loan repayment £
Cost of loan £
APR
Total amount payable £

Finance only available to UK residents over 18, subject to terms and conditions

To purchase on finance simply add items to your basket and select the 'Finance' payment option at the checkout page.

Qty:

Product code: RV581M200100/200

Description

Carbon Air Intake Upgrade

Overview

The Revo Carbon Air Intake Upgrade is designed to work in harmony with Revo software to unleash the maximum potential from your engine.

Flow testing of the OEM intake emphasised the restrictions in the system, giving the Revo engineers a clear indication of what needed improving. The stock front panel, used to direct air to the airbox, the standard air filter and convolutions in the rear pipe from airbox to turbo were found to be the main ‘choking points’ in the system.

The Revo system is a direct replacement kit and includes a beautiful carbon front panel, designed to direct cold air directly to the OEM air box utilising an internal fin, along with a second feed of cold air in to the engine bay to help keep ambient temperatures lower. A Revo ProPanel filter is included to replace the restrictive stock filters, and a Revo by SamcoSport silicone hose allows air to flow smoothly to the turbo from the airbox.

Benefits

  • +16 WHP & +20 NM
  • Revo by SamcoSport Hose
  • 100% Carbon Front Section
  • 26% Less Restriction
  • Revo ProPanel Filter
  • Direct Replacement Kit
  • Carbon Front Section

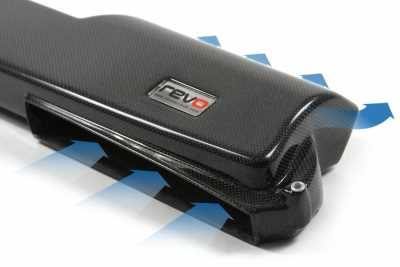

Carbon Front SectionThe Revo carbon front section integrates a direct cold air feed which is blanked off on the standard part, and also includes an internal fin that directs air towards the airbox. Designed to also aid in lowering ambient engine temperatures, the Revo engineering team have integrated a second air inlet to allow a direct cold air feed to the engine bay.

More Air FlowManufactured using the highest quality materials, the Revo carbon front section directly replaces the standard plastic part. A high gloss carbon finish coupled with impressive performance benefits offers a product that delivers in form and function, looking great in the engine bay yet still performing above and beyond the OEM part.

SamcoSport Silicone Hose

Revo SamcoSport Silicone Hose

More Than A HoseDesigned by Revo and manufactured by SamcoSport, this hose replaces the convoluted plastic rear pipe from airbox to turbo. The high temperatures and negative pressures caused by the turbo are often the reason manufacturers use plastic pipework. Plastic is rigid however and the turbo requires a certain amount of flex under load, this is why convolutions are used. Revo hoses are built by hand using automotive grade silicone and a high temperature nomex fabric to resist high temperatures.

The hose features an internal wire helix designed to stop the hose collapsing under negative pressure caused by the turbo. Each end of the hose has been specifically designed with an internal step that when fitted gives a smooth join with no edges, this reduces air turbulence allowing air to reach the turbo more quickly.

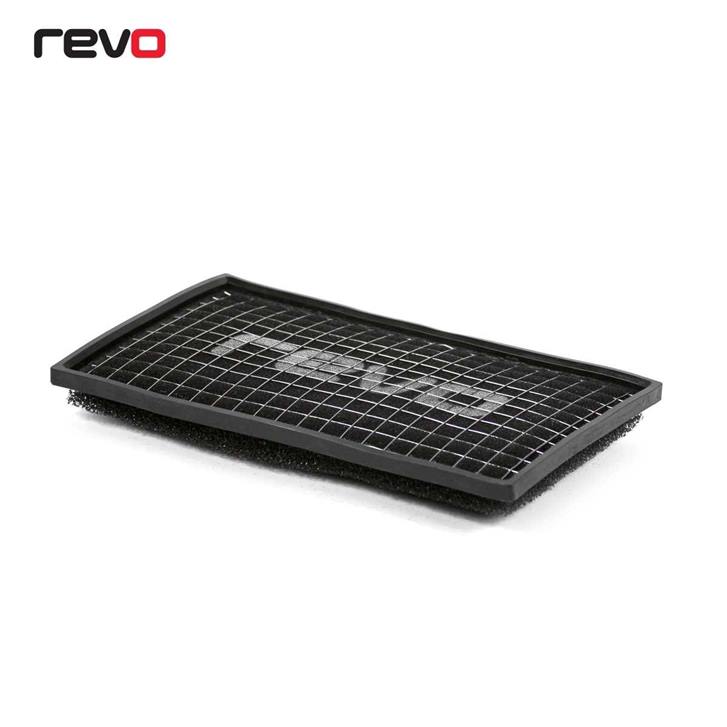

Revo Propanel Filter

Revo Three Stage Foam FilterThree Stages

Revo ProPanel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filters surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used, choking the engine and reducing performance.

The outer core is a coarse foam designed to trap larger particles, the second layer is a medium foam designed to trap most particles and the inner core is fine foam which will trap any particles small enough to reach it. The triple layer foam design ensures an exceptional level of engine protection and long term performance advantage.

Testing

More Air, Less Restriction

Testing was carried out in consistent conditions on both the OEM intake and the Revo Carbon system, fitted to a vehicle and also in a standalone test off the car.

The Revo system was tested on a flow bench to highlight the kits efficiency in allowing more air to reach the turbo, quickly and with less restriction. The OEM system reached its maximum potential of 440 cubic feet per minute, compared to the Revo system which was able to flow 480 CFM with a restriction of around 600 mmWg. This difference allows the engine to still make power at the top of the rev limit when installed with the Revo kit.

Increased Power and torque

The kit was installed on a variety of stage 2 & 3 vehicles, all tested on a 4-wheel hub dyno. Three consecutive runs were carried out on each vehicle comparing the stock system to the Revo Carbon Air Intake system. A consistent gain of +10WHP was found on the 300ps 2.0TSI and +17WHP on the 220ps 2.0TSI, with both giving an average gain throughout the rev range of +16NM torque. It was also noted that with the greater flow of air the turbo was able to spool a lot more quickly giving enhanced throttle response.

Technical Documents

The following documents are available to view:

Fitting Instructions

RV581M200200 Revo Full Carbon Kit Fitting Instructions HERE ...

RV851M200100 Revo Front Carbon Section Fitting Instructions HERE

Fitting

RV581M200100 - Carbon Intake System - Carbon Front Section, Air Filter and hose

  • Audi S3 (8v) 2.0 TFSI 12 -
  • Audi TT 2.0 TFSI 15 -
  • Audi TTS 2.0 TFSI 15 -
  • Audi A3 (8v) 1.8 / 2.0 TFSI 12 -
  • Seat Leon Mk3 1.8 / 2.0 TSI 12 -
  • Skoda Octavia Mk3 1.8 / 2.0 TSI 12 -
  • Skoda Superb Mk3 2.0 TSI 15 -
  • VW Golf MK7 2.0 TSI (GTi/R) 12 -

Fitting

RV581M200200 - Carbon Front Section only

  • Audi A3 (8v) 2.0 CR Diesel 12 -
  • Audi TT Mk3 2.0 CR Diesel 14 -
  • Seat Leon Mk3 2.0 CR Diesel 12 -
  • Skoda Octavia Mk3 2.0 CR Diesel 12 -
  • Skoda Superb Mk3 2.0 CR Diesel 15 -
  • VW Golf MK7 2.0 CR Diesel & GTD 12 -

*Images are for illustration purposes only. Full kit is required to achieve quoted figures.
