Radium: Port Injection Kit, Ford EcoBoost

Price: £486.88


Excluding VAT Price: £405.73

Finance available Find out more

Monthly payments £
Amount of goods £
Deposit amount £
Loan amount £
Loan repayment £
Cost of loan £
APR
Total amount payable £

Finance only available to UK residents over 18, subject to terms and conditions

To purchase on finance simply add items to your basket and select the 'Finance' payment option at the checkout page.

Qty:

Product code: RAD/20-0326

Description

Typically Ships In 5-10 Days

  • This kit is compatible with many vehicles including the the following:
  • 2013+ Ford Focus ST EcoBoost
  • 2016+ Ford Focus RS EcoBoost
  • 2015+ Ford Mustang EcoBoost

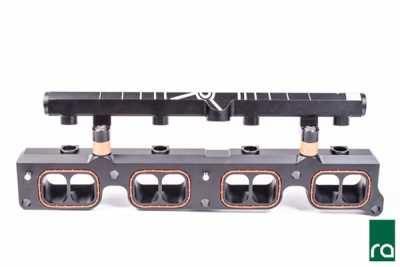

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower Ford EcoBoost engines. This kit does NOT replace the OEM direction injection system.

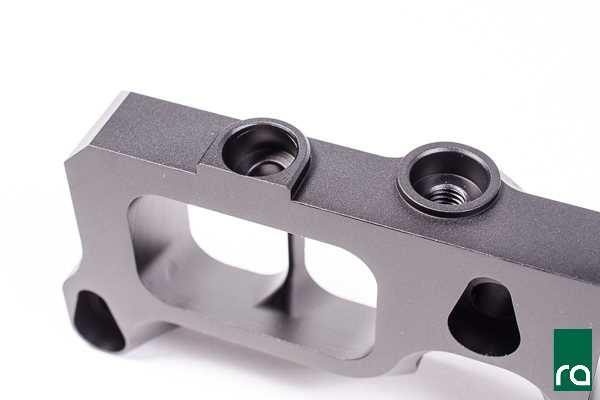

The 6061 CNC machined aluminum adapter features a smoothed port divider promoting laminar flow into the combustion chambers. The injector spray pattern is divided evenly into each runner.

The angled air flow passages through the PIK adapter plate (shown in green) are CAD matched to the intake ports and manifold to minimize any impact to air flow through the ports.

The fuel rail features a large 0.69" internal diameter bore. It is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. All 3 ports (ends and center) are machined with an 8AN ORB (3/4-16 female) port. For a list of 8AN ORB adapter fittings, go HERE. Machined phenolic mounting spacers and washers are included to completely isolate fuel created by the cylinder head and transferred through the mounting bolts. The injectors are at a max angle to ensure proper spray into the ports

  • Below are some of the many fuel injectors that are compatible with this kit:Injector Dynamics ID850-34-14-14
  • Injector Dynamics ID1050x-34-14-14
  • Injector Dynamics ID1300-34-14-14
  • Injector Dynamics ID1700-34-14-14
  • Injector Dynamics ID2000-34-14-14
  • Evolved Injection DPI550-38-14-14
  • Evolved Injection DPI650-38-14-14
  • Evolved Injection DPI850-38-14-14
  • Evolved Injection DPI1000-38-14-14
  • Evolved Injection DPI1200-38-14-14
  • Evolved Injection DPI1300-38-14-14
  • Evolved Injection DPI2200-38-14-14
  • RC Engineering SM2-0310
  • RC Engineering SM2-0370
  • RC Engineering SM2-0450
  • Deatschwerks 16U-00-0042-4
  • Deatschwerks 16U-00-0050-4
  • Deatschwerks 16U-00-0065-4
  • Deatschwerks 16U-00-0090-4
  • Deatschwerks 16M-00-1500-4
  • Deatschwerks 16M-00-2200-4
  • NOTE: Fuel injectors, port fittings, fuel hose, wiring, injector controller, etc. are NOT included and must be sourced elsewhere
