PCV Baffle Plate, Ford EcoBoost Focus RS /ST and Mustang

Select from the following options...

Price: £116.94


Excluding VAT Price: £97.45

Qty:

Product code: RAD/20-0327-01

Description

IMPORTANT: If using with the Radium Engineering Focus RS/ST catch can kits, select the "OEM Configuration" option above. This will install perfectly with the PCV catch can kit and no other parts are needed.

The Baffle Plates are compatible with a wide range of Ford and Mazda vehicles. Below is a list of just a few of the popular applications:
2013+ Ford Focus ST EcoBoost
2016+ Ford Focus RS EcoBoost
2015+ Ford Mustang EcoBoost
2010+ Ford Fusion Duratec
07-13 Mazdaspeed 3 MZR
06-07 Mazdaspeed 6 MZR
05-15 Mazda MX-5 MZR
15-16 Zenos E10

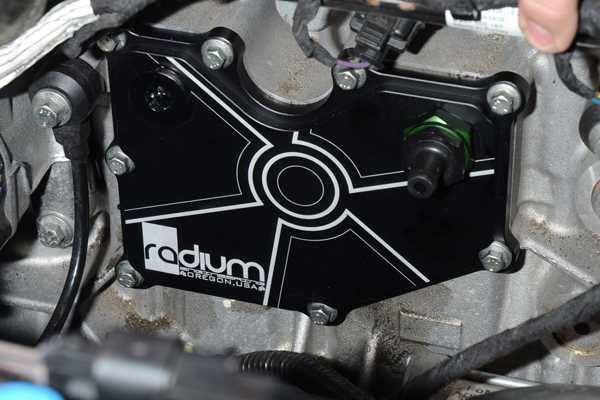

Ford Focus RS EcoBoost engine shown below.

Ford Fusion Duratec engine shown below.

Mazda MX-5 MZR engine shown below.

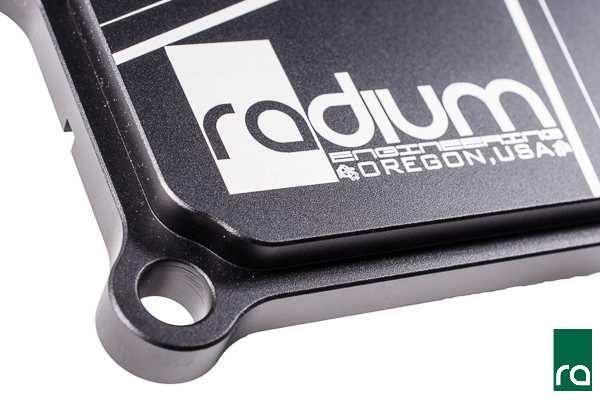

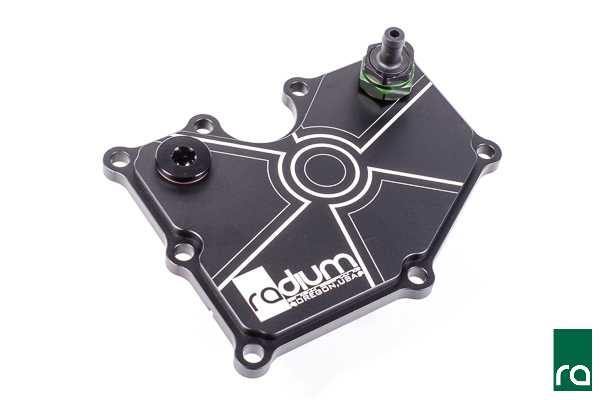

The Radium Engineering PCV Baffle Plate mounts to the engine block and replaces the factory plastic PCV plate and valve. Compared to the OEM unit, the CNC machined aluminum Radium Engineering PCV plate features an extra baffle to prevent oil sludge from entering the intake system without restricting air flow. Furthermore, there are two 10AN ORB ports machined above both aluminum baffles.

20-0327-01 PCV Baffle Plate, EcoBoost, OEM Configuration

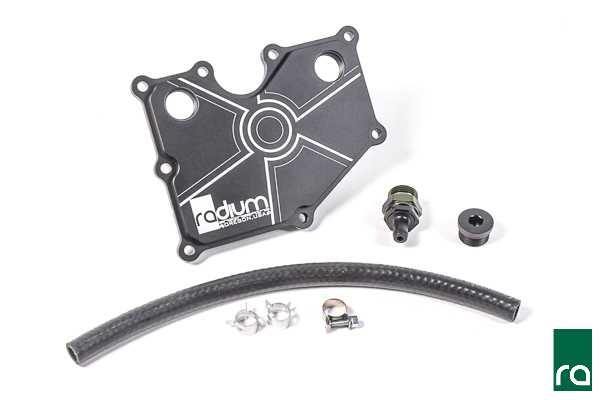

The OEM configuration kit includes all parts necessary for a plug and play installation and can be used with the OEM PCV tubing or with aftermarket Radium catch cans. Because the OEM Ford PCV valve leaks at all boost levels, this kit includes Radium's own 10AN ORB PCV Valve which prevents boost from leaking into the crankcase. No permanent vehicle modifications are required. Exact contents of 20-0327-01 are shown in the picture below.

INCLUDED

  • -Billet Aluminum PCV Plate with Baffles
  • -Aluminum 10AN ORB PCV Valve
  • -Aluminum 10AN ORB Plug
  • -Rubber 3/8" PCV Hose
  • -EFI and Spring Hose Clamps

20-0327-02 PCV Baffle Plate, EcoBoost
This kit includes ONLY the Radium PCV plate and associated baffles. The twin 10AN ORB ports allow connection of breathers, catch cans, oil return lines, etc. for highly custom installations. 10AN ORB fittings are sold separately

INCLUDED
-Billet Aluminum PCV Plate with Baffles
