Ford Focus RS Mk3 2016 Revo Stage 1 Software

Stage 1 Performance Software

increases

from 370ps to 382ps & from 395lbft to 415lbft

Please note this product is only fitted in our workshop in St Albans.

Enhanced power delivery, unique safety features and white-knuckle response at your disposal, Stage 1 Software for the Mk3 Focus RS gives you access to much more than just peak power figures. By engineering our Software in-house we have been able to completely re-design the way in which your vehicle delivers power and responds to your input with power available on-demand in every gear. Access to over 20,000 different parameters directly from the ECU enables the Revo calibration team to unlock your engines true potential, while ensuring everything remains within safe factory levels. Stage 1 Software is a must for RS owners who want stand out from the crowd.

2.3 Litre EcoBoost

The 2016 Mk3 Focus RS has arguably been the most talked about release of the year; and for good reasons. Ford has managed to pack in plenty of tech including a 4WD system with independent rear clutch packs and features such as drift mode into a rather weighty package that still offers the agility and handling capabilities of a much smaller hatchback.

Although the RS is currently the most ‘powerful’ standard RS to date, we knew that there was potential for much more. Having over twelve months of development on the similar 2.3 litre EcoBoost engine found in the Ford Mustang and knowing the RS was to use the same Bosch MED17 ECU we have eight years of experience with, we were more than prepared for our Focus RS development vehicles. By evaluating the data logged on track, road and at our in-house dyno facilities, we were able to assess the capability of the RS engine and highlight areas we could improve.

We knew Stage 1 would really bring the car to life; by utilising the hardware’s full potential and integrating additional safety features unique to Revo such as Cold Start Protection and Temperature Control which actively monitor oil, intake and exhaust temperatures and reduce power if they get too high, you can rest assured that your RS is able to take all you can throw at it, whatever the conditions ensuring a responsive and exciting experience, without compromising on drivability or engine tolerances.

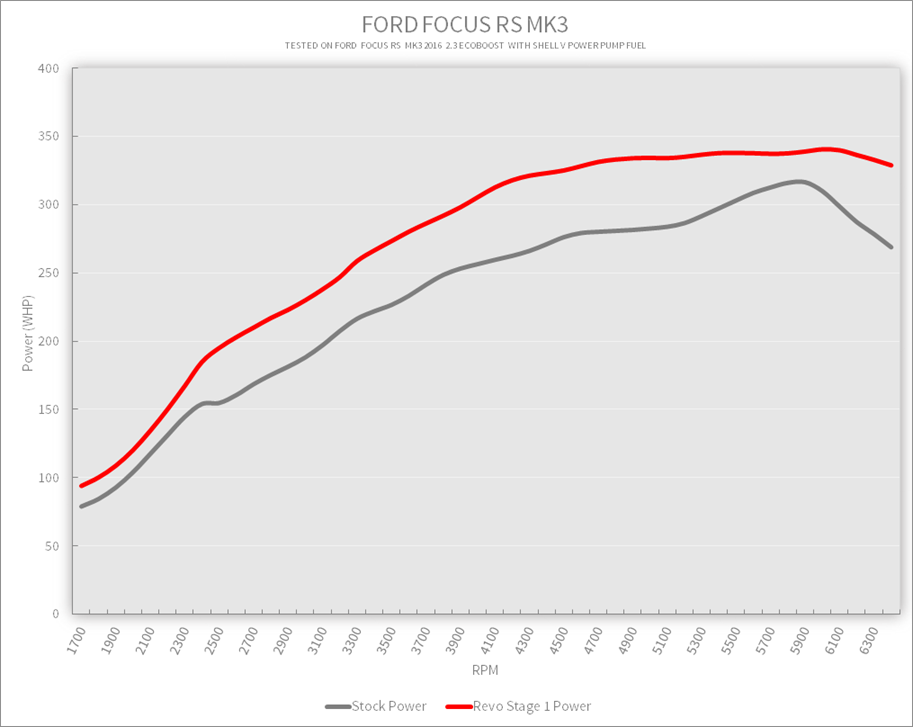

Power Graphs

We quickly discovered that the way in which the RS delivered power was far from linear. After data-logging on road, track and our in-house hub-dyno, we could see that boost was delivered incrementally, peaking much higher up the RPM range than expected. This higher RPM boost increase does nothing for midrange but does leave a spike in the power curve, giving a healthy peak power figure. This is more than a numbers game, Revo software has been designed to give a performance benefit in the real world, whether on the road or track, as highlighted by our power graphs, we have concentrated on giving power gains throughout the rev range with impressive midrange power increases making the RS an experience you won’t forget.

*All graph data produced using a 2016 Ford Focus RS MK3 2.3 EcoBoost with Standard Shell vpower Pump Fuel **Stock figures and graphs using overboost feature

Performance Times

Performance testing was carried out on a private track in the UK with an ambient temperature of 19ºC. 2016 Ford Focus RS MK3 2.3 EcoBoost with manual transmission in Race mode. Revo Rv019 19" wheels with road tyres, traction control off and 98RON Shell® vPower®. The average performance times are taken from 9 consecutive runs.

Temperature Protection Feature

Revo Stage 1 tuning is developed to work within the constraints of the standard engine; we could run more boost and power, but not reliably or consistently on an otherwise standard vehicle. Our testing indicated that this engine struggles with heat management; in high temperature conditions (Rolling Road, High ambient temps, prolonged vmax/track use) intake air temperatures (IAT) climb very quickly without additional cooling modifications.

We have implemented additional safety features by reducing overall power as IAT's climb to undesirable levels.

IAT over 60ºC, power is reduced by 5%
IAT over 65ºC, power is reduced by 10%
IAT over 70ºC, power is reduced by 15%
This feature also actively monitors exhaust gas tempatures (EGT). If EGT's begin to rise towards unsafe levels then power is automatically reduced by up to 10% untill the engine reaches a safe operating temperature.

Cold Start Protection Feature

For engine oil to work effectively and lubricate your engine it needs time to warm up. When you first start your car, the cold oil is at it's thickest, which requires higher oil pressure to pump it around the engine putting extra pressure on oil seals. As the engine temperature increases, so does oil temperature. This thins the oil, enabling it to run more freely and lubricate the moving parts of your engine.

Cold Start Protection helps protect engine components by limiting RPM until the oil temperature increases.

Oil below 40ºC: 4500RPM Rev limit
Oil between 41ºC and 79ºC: 5000RPM Rev limit
Oil above 80ºC: Full increased 7000RPM Rev limit

Added Features

The calibration team at Revo have studied the RS's ECU in depth and integrated features that offer Revo ECU performance software beyond just figures.

Shift Light

The shift light has been optimised for Revo stage 1 software and now indicates the best shift point based on the improved tuning. The "RS" light now comes on at 6200RPM where the power is at it's peak, it then starts Flashing at 6500RPM to indicate optimal power is decreasing.

Switchable Software

Using an SPS switch you are able to take advantage of the switch-ability of Revo software. The Patented OBD2 interface is the ultimate compliment to our performance software, giving the user the ability to switch between 2 fuel quality modes (97RON and 98RON) and a stock performance setting via the vehicle OBD port, along with the benefit of a security lockout program (anti-theft). This anti-theft feature will allow the car to be started but then will not idle or run.

Simply select a program, plug in, wait a few seconds, remove the SPS device and start the car. It's simple and there's no fixed switch to install in the vehicle.
