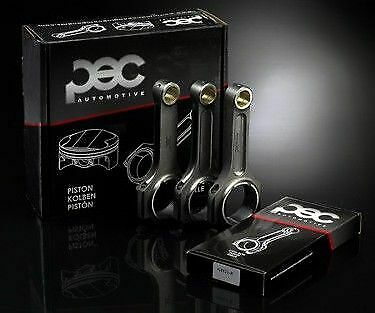

Ford 1.0 EcoBoost Turbo PEC Forged Pistons & PEC Steel Connecting Rod Kit

Price: £1003.30


Excluding VAT Price: £836.08

Finance available Find out more

Monthly payments £
Amount of goods £
Deposit amount £
Loan amount £
Loan repayment £
Cost of loan £
APR
Total amount payable £

Finance only available to UK residents over 18, subject to terms and conditions

To purchase on finance simply add items to your basket and select the 'Finance' payment option at the checkout page.

Qty:

Product code: K9527/G0167

Description

After years of market research and actual product testing in conjunction with several well respected tuning companies, PEC at last launches a new breed of piston on too the European market.

One of the things missing from the European aftermarket industry, is a mass produced piston range that is engineered for the end users needs. Using the last decade's of experience, we here at PEC are confident we have developed a range of pistons to suit almost every possible need.

Why are PEC pistons so good? Well the answer is simple. Most mass market piston manufacturers will rely on online data and a single customer's feedback when creating a piston, often without taking into account things like the average age of an engine, the correct cylinder head chamber volume, the correct gasket thickness. All this can be calculated, but it is never 100% correct..... Until now.

If your buying a PEC piston kit, your also buying into our research and development, as well as countless hours of experience and customer feedback on achieving the optimum level of performance from the pistons in your engine.

Size - 71.9mm - H161DA

Wossner pistons

Fiesta 1.0 12v Turbo 3cyl Eco-Boost Forged Piston Kit
Manufacturer
Ford

Kit Part Number
K9527

Engine Code
SFJA / SFJB / SFJC / SFJD / M1JE / M1JH

YOM From
2012

YOM To
2018

Piston number
K9527DA

Bore Size
71.9mm

Stroke
82mm

Compression Height
27.36mm

OEM Comp Ratio
10:01

Number of Rings
3

OEM Rod Length
137mm

Clip Part Number
CW20

Pin Size
20mm

Pin Part Number
WP065

Cylinders
3

Valves Per Cylinder
4

Suits Wossner Con Rod
G0167

Con Rod Length C/C
137mm

1.0T 3cyl Eco Boost H-Beam Connecting rods
Manufacturer
Ford

Kit Part Number
G0167

Engine Code
SFJA / SFJB / SFJC / SFJD / M1JE / M1JH

YOM From
2012

YOM To
2018

Con Rod Length C/C
137mm

Con Rod Big End Dia
43mm

Con Rod Big End Width
19.55mm

Con Rod Small End Dia
20mm

Con Rod Small End Width
19.55mm T

Con Rod Bolt
5/16"

ARP Bolt 5/16" Thread 1.5" UHL 2000 Series ( 3AG1.505-2U)
ARP Assembly Lubricant (100-9908)
